The ROQ AUDiQ M10C is a multi-purpose condenser microphone loaded with features such as high pass filter and pad attenuation switches. Combined with the large 34mm diaphragm make this microphone incredibly versatile.

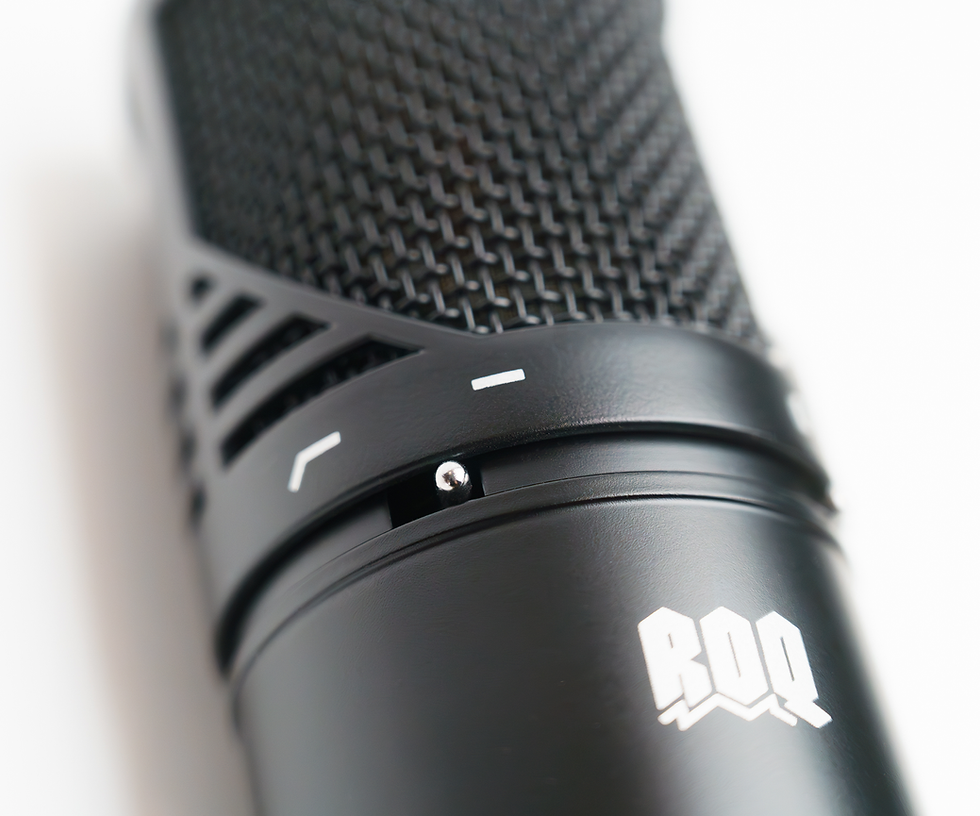

M10C Condenser Microphone
Features
Large 34mm diaphragm
Cardioid uni-directional polar pattern
10dB pad attentuation switch
100Hz 6dB/oct high pass filter switch
Balanced XLR connector
Specifications
MODEL NAME
AUDIQ M10C
Element
34mm diameter Pressure gradient transducer
Polar pattern
Cardioid uni-directional
Frequency Response
20Hz - 20kHz
Sensitivity
-36dB +/-2dB (0dB=1V/pa at 1kHz)
Output impedance
150ohms +/-20% at 1kHz
Load impedance
>/= 1000ohms
Noise
13dB A
Max input SPL
130dB at 1kHz </= 1% THD
S/N ratio
81dB
Power requirement
+48V phantom power
Current consumption
3mA
Body dimensions
48mm diameter x 180mm
